KSCAN - E

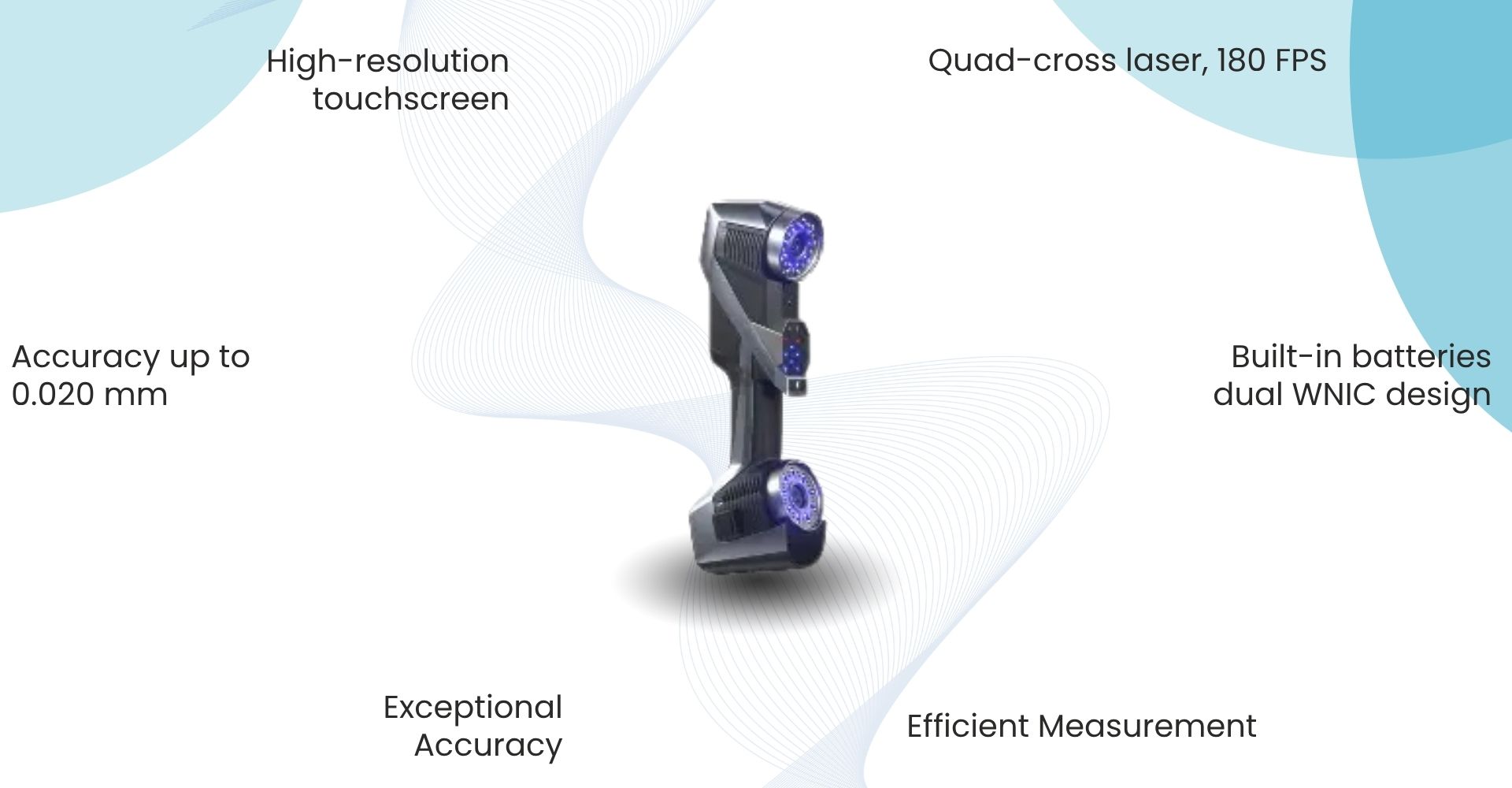

The flagship KSCAN-E is a wireless, all-in-one 3D scanner that redefines industrial measurement with exceptional precision and flexibility. Its 6 operating modes capture high-quality data from both large surfaces and fine details. With accuracy up to 0.020 mm and innovative quad-laser scanning, KSCAN-E meets the toughest industry demands—from aerospace and automotive to energy and heavy industry.

Technical Specifications

Scan mode		Ultra-fast scanning	108 blue laser lines (Quad Cross Technology)
		Hyperfine scanning	17 blue parallel laser lines
		Large area scanning	38 infrared laser lines (Crossed)
		Deep hole scanning	1 Extra blue laser line
		Hole & edge scanning	Smart edge inspection
		Photogrammetry	Adaptive photogrammetry
Accuracy⁽¹⁾			0.020 mm
Volumetric accuracy⁽²⁾		Standard	0.015 mm + 0.030 mm/m
		Adaptive Photgrammerty(2)	0.015 mm + 0.015 mm/m
		Paired with MSCAN – L15	0.015 mm + 0.012 mm/m
Shape Error ⁽¹⁾		Sphericity	0.030 mm
		Flatness	0.050 mm
Scanning rate up to		8,290,000 measurements/s
Scanning area up to		1440 mm × 1000 mm
Working distance		Large area scanning	600 mm ? 1500 mm (Stand-off distance 900 mm)
		Ultra-fast scanning	200 mm ? 700 mm (Stand-off distance 320 mm)
		Hyperfine scanning	150 mm ? 300 mm (Stand-off distance 220 mm)
Object size			0.05 m ? 8 m
Laser class			Class? (eye-safe)
Resolution up to			0.010 mm
Dimension			344 mm × 124 mm × 99 mm
Connection	Interface mode		USB3.0 Type – B
	Output format		.stl, .obj, ply, .asc, igs, .txt, .mk2, etc.
	Wireless standard		Wi-Fi 6, 802.11 a/b/g/n/ac/ax
	Wireless connection		Support Dual WNIC
	Intelligent and wireless mode		Support
	Uninterrupted power supply		Support
Environment Adaptability	Operating environment		Fanless, suitable for workshop environments
	Operating temperature range		-10°C–40°C
	Operating humidity		10 – 90% RH
	Protection rating		IP50
Patent	CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1, KR102209255B1, US10914576B2, CN113470180B, CN113218417B, CN113063370B, CN218411073U, CN113310427B, CN113074659B, CN218772495U, CN113473034B, CN115830249B, CN219829786U, CN116206069B
