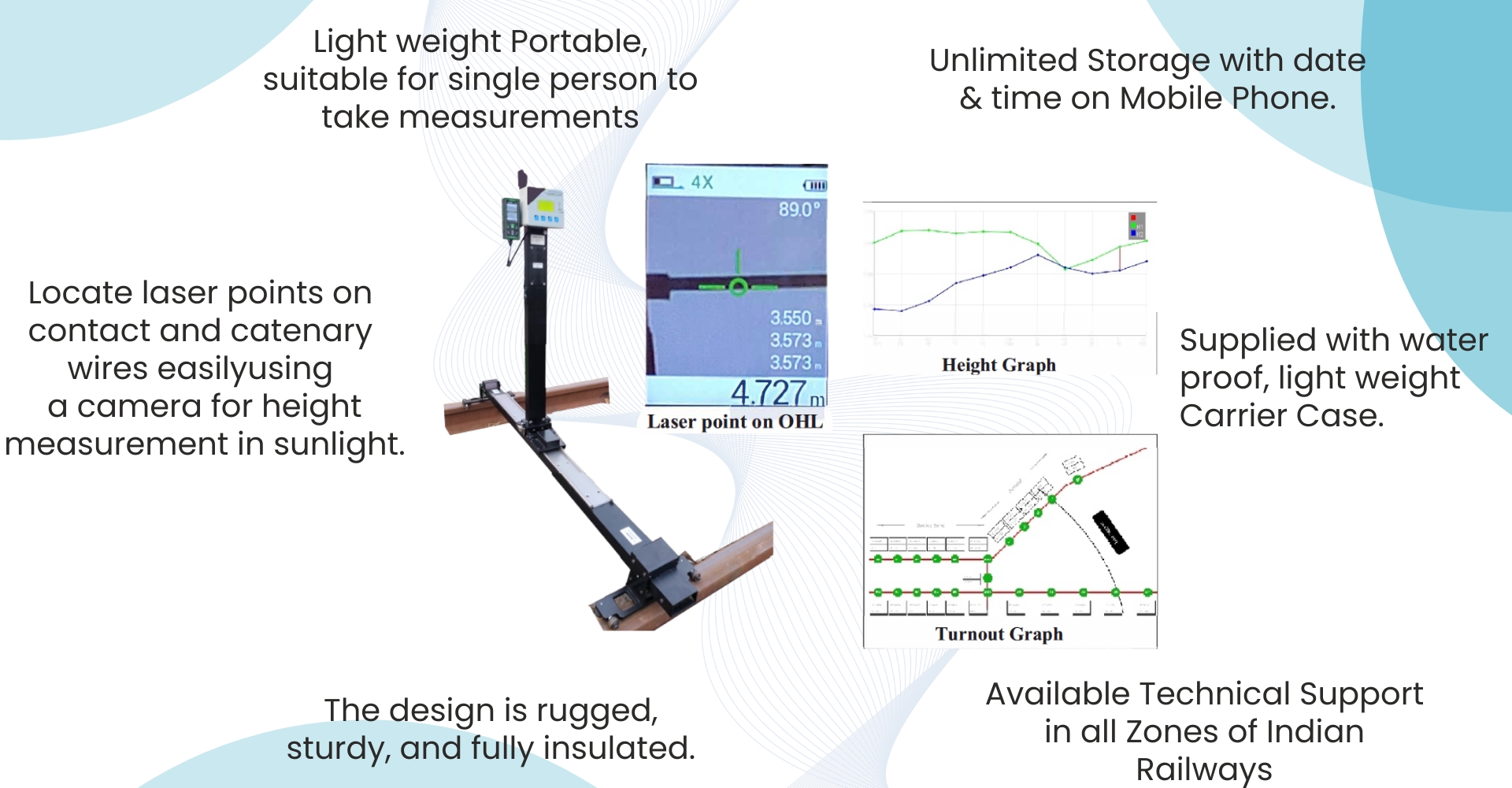

Electronica's Live Line Monitoring Gauge with android application has been developed to map the layout of Turnouts, Crossover and overlaps through contactless mechanism using Camera and laser based technology without taking power blocks.
|
Model |
LINSPECT-HS
PLUS |
|
Measurement Scheme |
The Gauge is equipped with an
automated laser and encoder system to get precise reading of height &
stagger. |
|
Cable Height Measurement Range Laser Accuracy Resolution |
0.2 m to 20 m ± 1 mm 1 mm |
|
Cable Stagger Measurement Range Stagger Accuracy Resolution |
± 520 mm ± 10 mm
(at 5m Height) 1 mm |
|
Cant/Super-Elevation Measurement
Range Accuracy Resolution |
± 200 mm ± 2 mm 0.1 mm |
|
Implantation Range Laser Accuracy Resolution |
Up to 20
m ± 1 mm 1 mm |
|
Display |
Results
are shown digitally |
|
Power Supply
of gauge |
16.8V
(on full charge), Li-ion battery 2400mAh –
with charger |
|
Working temperature range,°C |
-20°C to +50°C |
|
Weight |
10 Kg
Approx |
|
|
|
