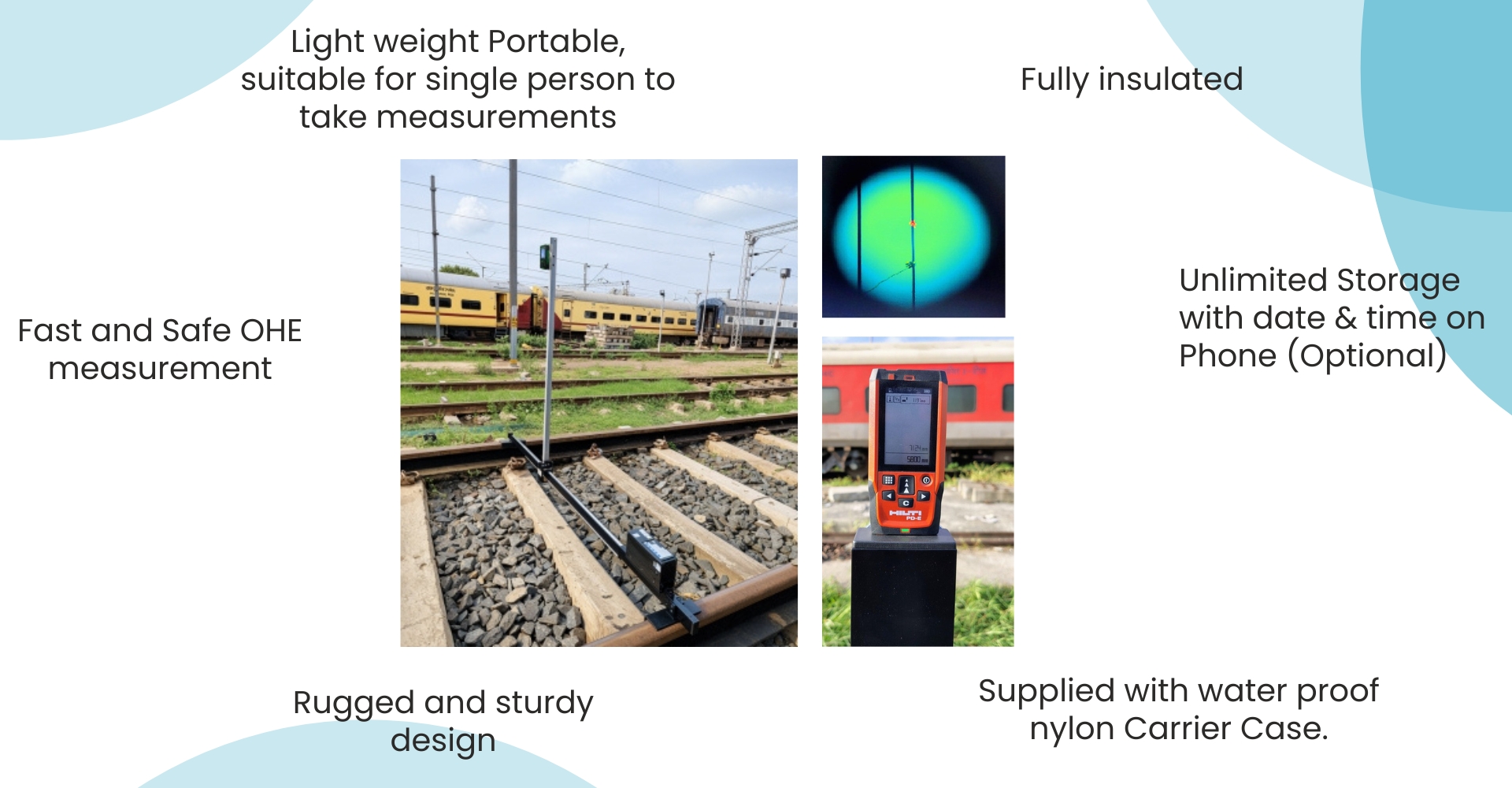

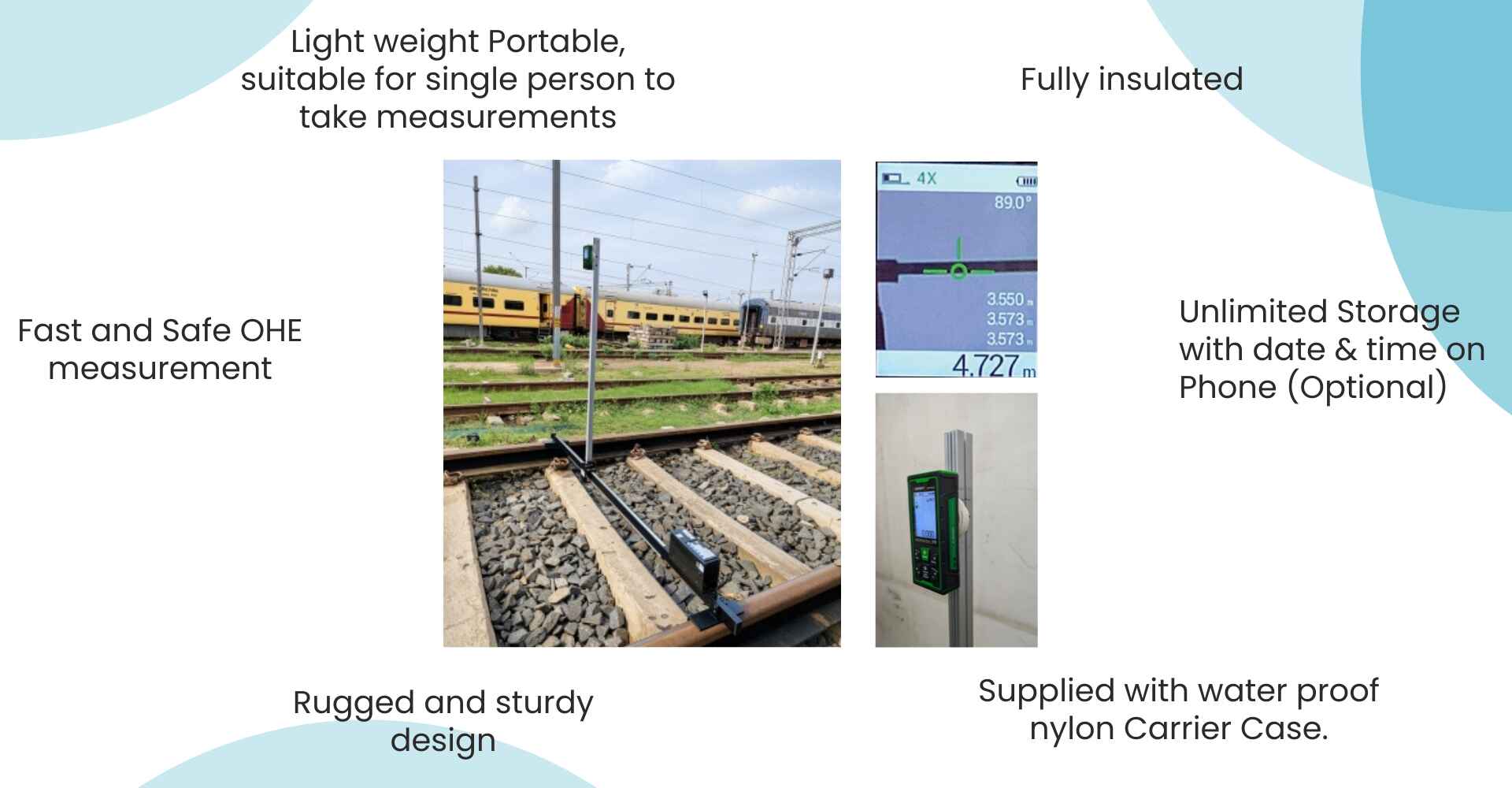

Electronica's Live Line Monitoring Gauge brings to you an easy to handle and easy to use, folding , light weight ,compact automated Non-contact laser system to measure Height and Stagger of railway overhead catenary wire (OHL) precisely.
|
Model |
LINSPECT-HS
|
|
|
|
Measurement Scheme |
The Gauge is equipped with an
automated laser and encoder system to get precise reading of height &
stagger. |
|
|
|
Cable Height Measurement Range Accuracy Resolution |
1.2 m to 100 m ± 3 mm 1 mm |
|
|
|
Cable Stagger Measurement Range Accuracy Resolution |
± 520 mm ± 10 mm
(at 5m Height) 1 mm |
|
|
|
Cant/Super-Elevation Measurement
Range Accuracy Resolution |
± 200 mm ± 2 mm 0.1 mm |
|
|
|
REFOS Range Accuracy Resolution |
± 200 mm ± 2 mm 1 mm |
|
|
|
Display
of results |
Display Results Digitally on LED
screen. |
|
|
|
Protection class |
IP64 |
|
|
|
Power Supply of
gauge |
16.8V (on full
charge), Li-ion battery 2400mAh - with charger |
|
|
|
Weight |
10Kg
Approx |
|
|
|
Working temperature range,°C |
-20°C to +50°C |
||
|
Weight Data
Storage facility |
Unlimited results storage along
with Result Export facility on High end Mobile phone. (Optional
functionality) |
||
|
|
|
||
