Platina Plus 450

Platina Plus 700

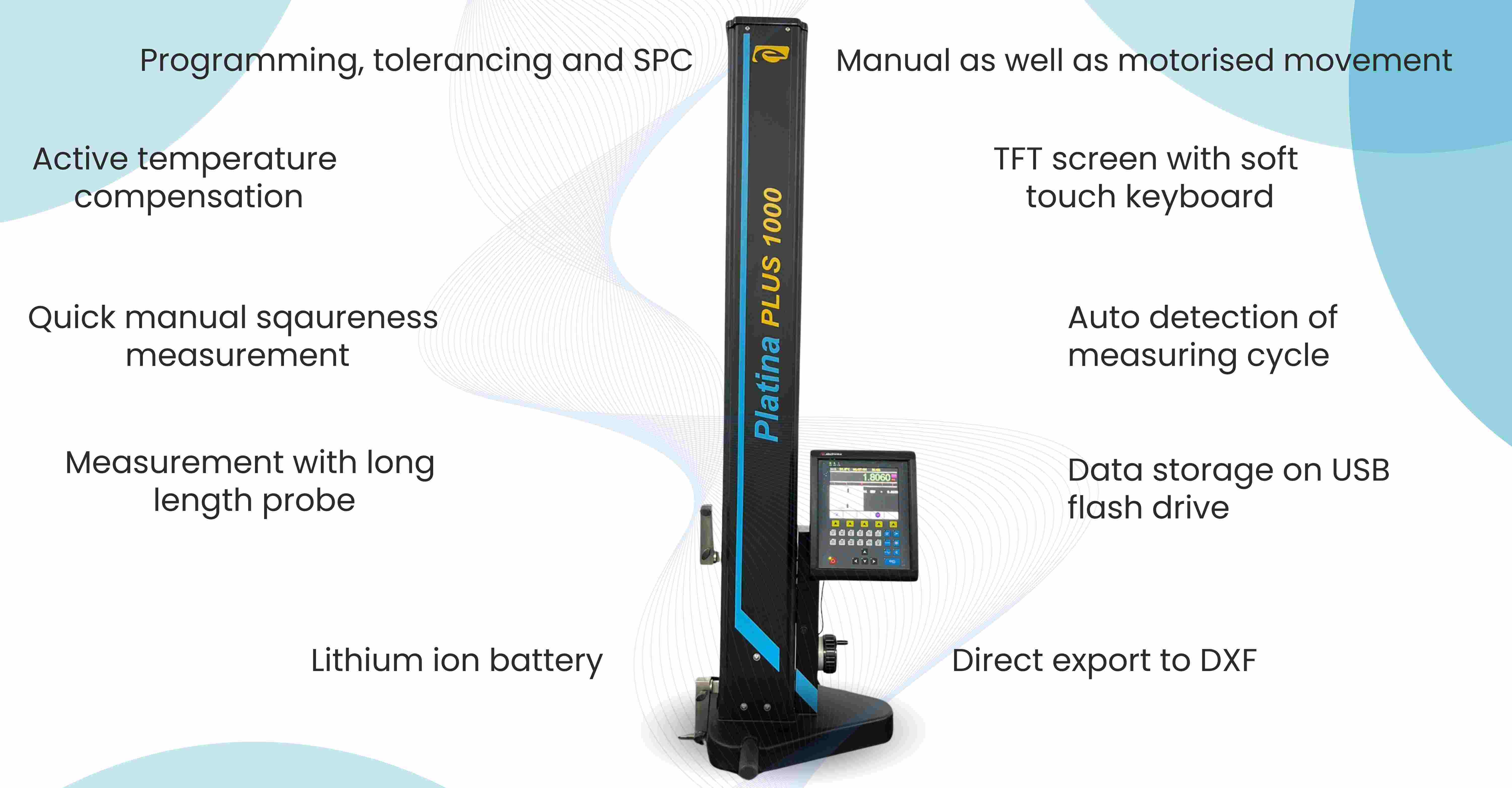

Platina Plus 1000

Measuring Range

450 mm

700 mm

1000 mm

Expandable Range

830 mm

1080 mm

1380 mm

Resolution

0.1 / 0.010 / 0.001 / 0.0001 mm (switchable in equivalent inches)

Repeatability (2s)

On Plane = 0.0004 mm and On Bore = 0.0009 mm

Max. Measurement Speed

1000 mm/sec

Measuring Force

1.0 N ± 0.2

Max. Permissible Error*

For 1.1 +0.6L/600 µm(L=Length in mm)

Squareness**

4 µm

4 µm

7 µm

Operation Time (Battery)

16 hrs.

Operation Temperature

10°C to 40°C

Weight

23 Kg

27 Kg

30 Kg

Standard Probe

Ruby ball Dia 6 x 48 mm
