Emerald

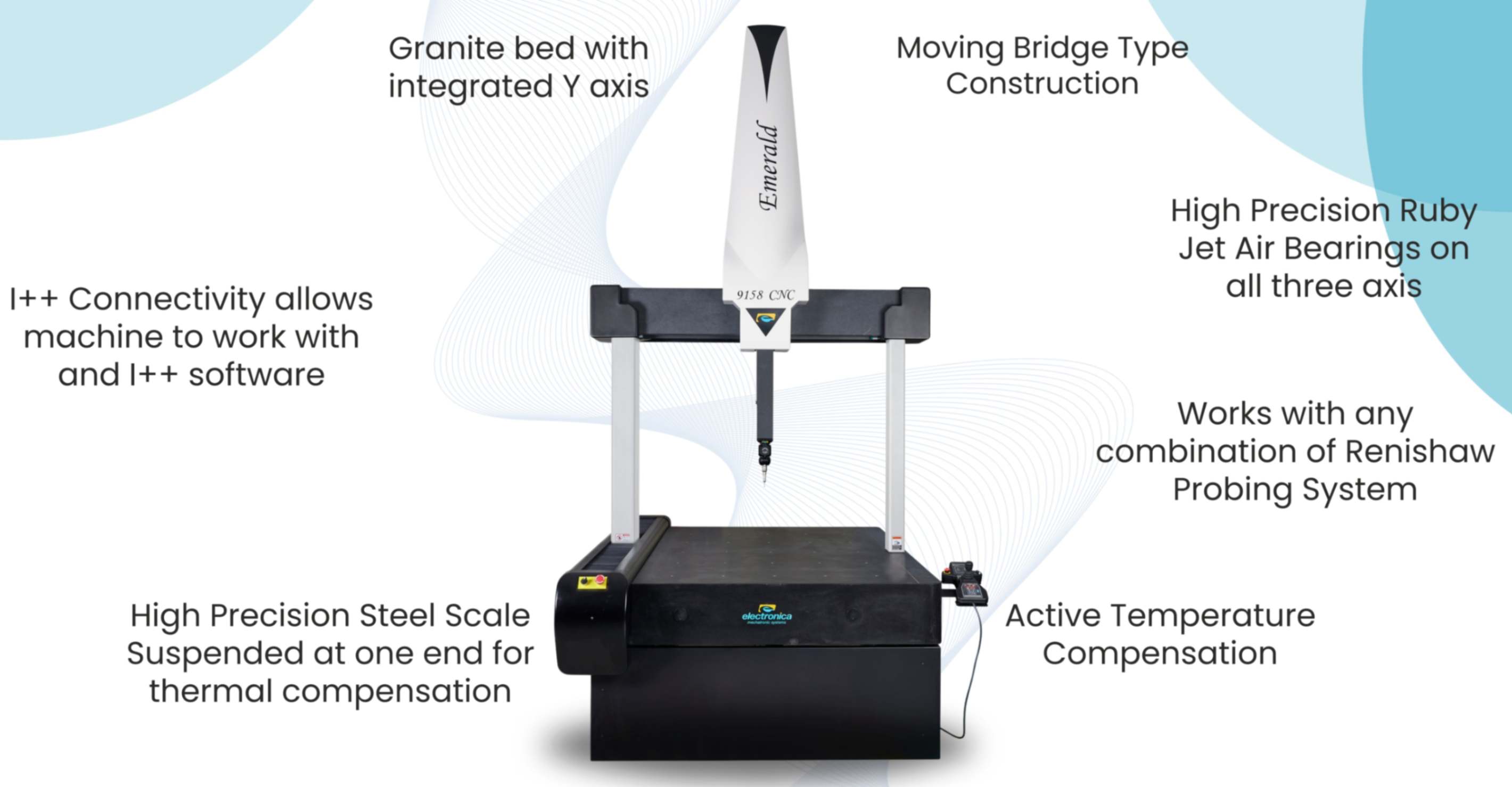

Emerald is specifically designed and built to perform precise measurement of heavy duty parts. It has high precision Ruby Jet Air bearings on all three axis which aid in accuracy and repeatable performance. Emerald series has thermally stable full granite construction and comes in varying sizes and load carrying capacities. It can be used with all types of probing systems from Renishaw including scanning probes and 5 axes motorized probes.

Technical Specifications

Specifications

Emerald 565



  Emerald 785

   Emerald 7106

Emerald 9158

Emerald 10209

Measuring Range - X axis

500 mm

700 mm

700 mm

900 mm

1000 mm

Measuring Range - Y axis

600 mm

800 mm

1000 mm

1500 mm

2000 mm

Measuring Range - Z axis

500 mm

500 mm

600 mm

800 mm

900 mm

Scale Resolution

0.1 µm as standard

Machine Construction

Granite base with integrated Y axis, Moving bridge construction in Granite

Maximum Workpiece Weight

                  650 Kgs

900 Kgs

1000 Kgs

Probing Head

Renishaw : MH 20i / MH 8 / MIH / PH 10T / PH 10M / PH 20 / SP 80 / SP 25 / Revo

Machine Dynamics

3D Vectorial speed – 500 mm/sec + 3D Vectorial acceleration – 600 mm/sec2

Module Changing Rack

MCR 20 / TCR 20 / FCR 25 / MRS

Software Options

Arco Graphics / Arco CAD / CMM Manager



Accuracy Chart for E Prime Series

             Probing System

Maximum Permissible Error

                      SP 25 M

        Stylus Dia 4 × 30 mm



      ± 2.1 + L / 250 µm

                        TP 200

           Stylus Dia 4 × 10 mm



        ± 2.2 + L / 250 µm

 TP 20

          Stylus Dia 4 × 10 mm



       ± 2.5 + L / 250 µm











Available Variants

Emerald 9158
Saphire
Pearl CNC
