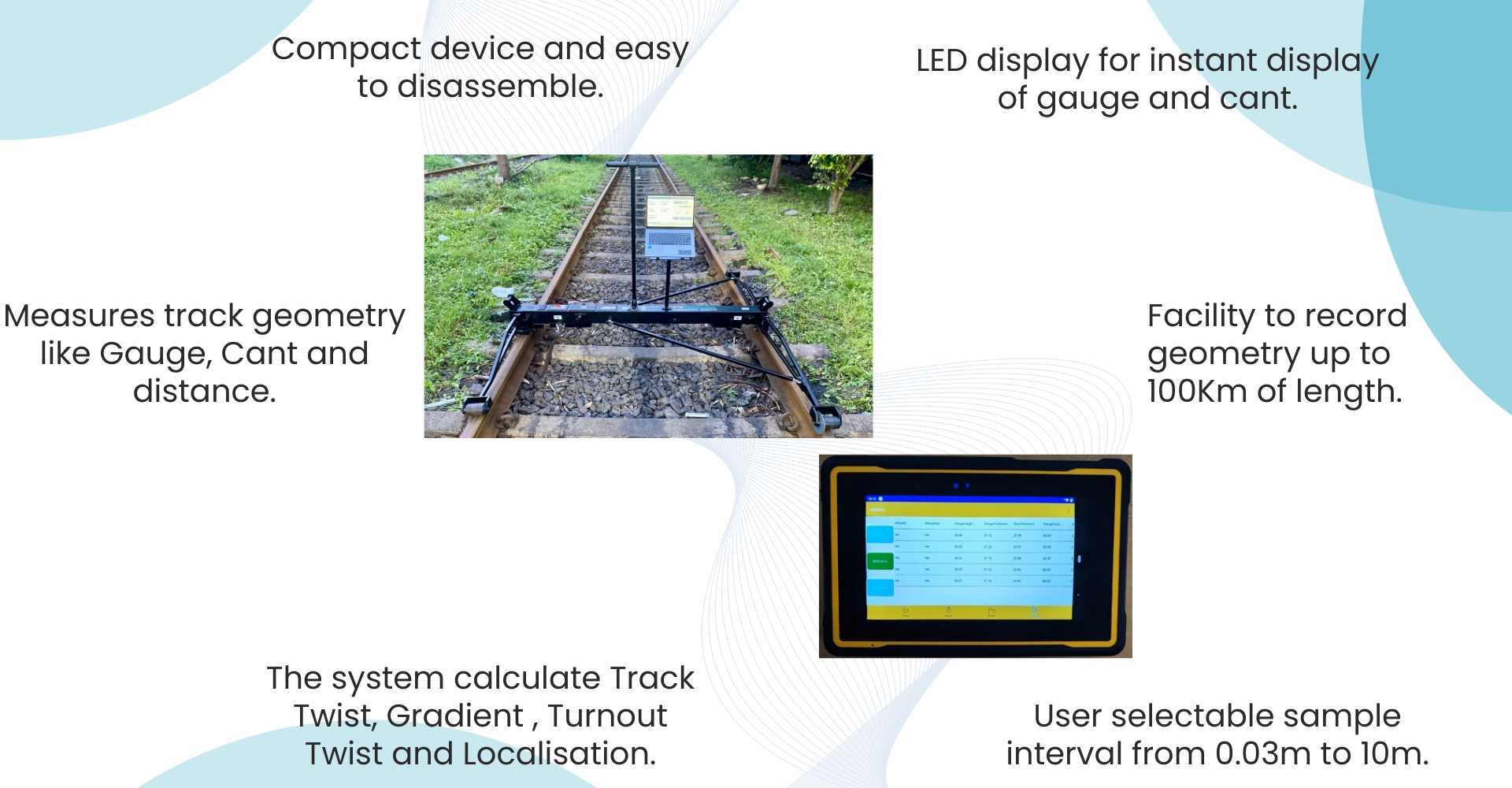

The Trolley is designed for measurement of track and turnout geometry. The Gauge accurately measure Track Gauge, Cant , Twist and distance covered by trolley and Twist in the tracks. The track geometry data is sent to a android/windows tablet for collecting the information , calculate the Alignment and Unevenness from the data and storing it.
|
Make |
Electronica |
|
Model |
Linspect-TG |
|
Track Gauge |
Range (-25mm, +50mm) Resolution - 0.1 mm Accuracy - ± 1 mm |
|
Cross Level |
Range - ± 250 mm Resolution - 0.3 mm Accuracy - ± 1 mm |
|
Unevenness |
Range - ± 50 mm Accuracy - ± 1 mm / 10 meter
Chord |
|
Alignment |
Resolution - ± 200 mm Accuracy - ± 1 mm / 10 meter
Chord (For straight section) |
|
Versine |
Accuracy - ± 1 mm / 10 meter
Chord (For curved track) |
|
Data sampling range |
0.031m to 1.0m (User
selectable). |
|
Battery Charging |
18V Charging Port |
|
|
|
