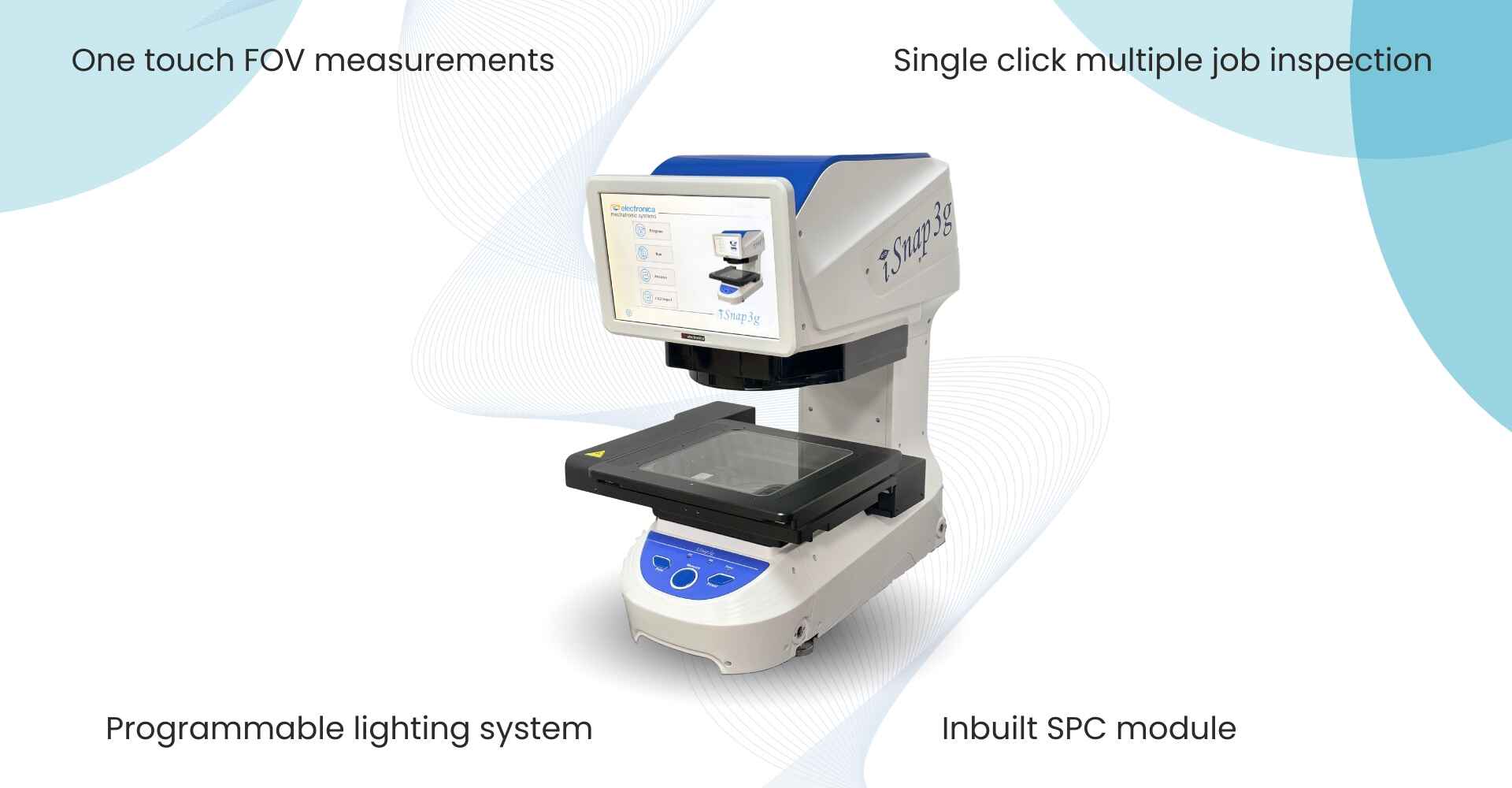

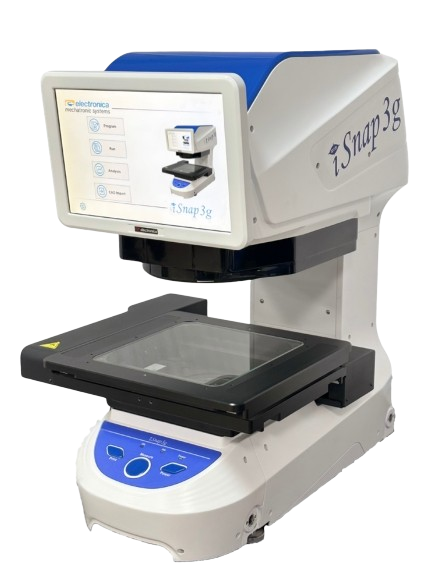

I Snap 3g Single Shot Measuring Machine

Technical Specifications

Specifications	I Snap 3	I Snap 3+	I Snap 3 Pro
Measuring Range High Precision mm	26 x 18	126 x 117 x 75	226 x 117 x 75
Measuring Range Wide FOV mm	Dia 100	200 x 200 x 75	300 x 200 x 75
Lens FOV High Precision mm	26 x 18
Lens FOV Wide FOV mm	Dia 100
Repeat Accuracy High Precision mm	± 0.002
Repeat Accuracy Wide FOV mm	± 0.002
Measurement Accuracy High Precision non Stitching mm	± 0.002
Measurement Accuracy Wide FOV non Stitching mm	± 0.004
Measurement Accuracy High Precision Stitching (µm)	N/A	± (2 + L / 50)
Measurement Accuracy Wide FOV Stitching (µm)	N/A	± (4 + L / 50)
Camera	1" Sensor, 20 MP B/W CMOS Camera x 2 Nos
Lens	Double Magnification Bilateral Telecentric Lens
Surface Light	Liftable quad white ring light + green gap light source
Back Light	Green Parallel bottom light source
Co axial Light	Optional
Table Load	5 Kgs
Software	EMS Developed Special Software
Working Environment	Temperature 20 ± 3 Degree; Humidity 30-80%
Machine weight	33	45	50
Overall Dimensions (L X W X H) mm	625 x 309 x 650	625 x 402 x 650	625 x 510 x 650
